MOTONE BMW R9T CUSTOM (2017 & 2021)
Client: Motone Customs
Our Role: Digital VR Model, Clay Model, A-Class Model.
Tank, seat and tail developed in clay, front fairing developed in VR.
Classic lines inspired by “air-head” BMW tanks like the R90S/R100S.
Dual layer front fairing with the tinted screen extending over the headlight

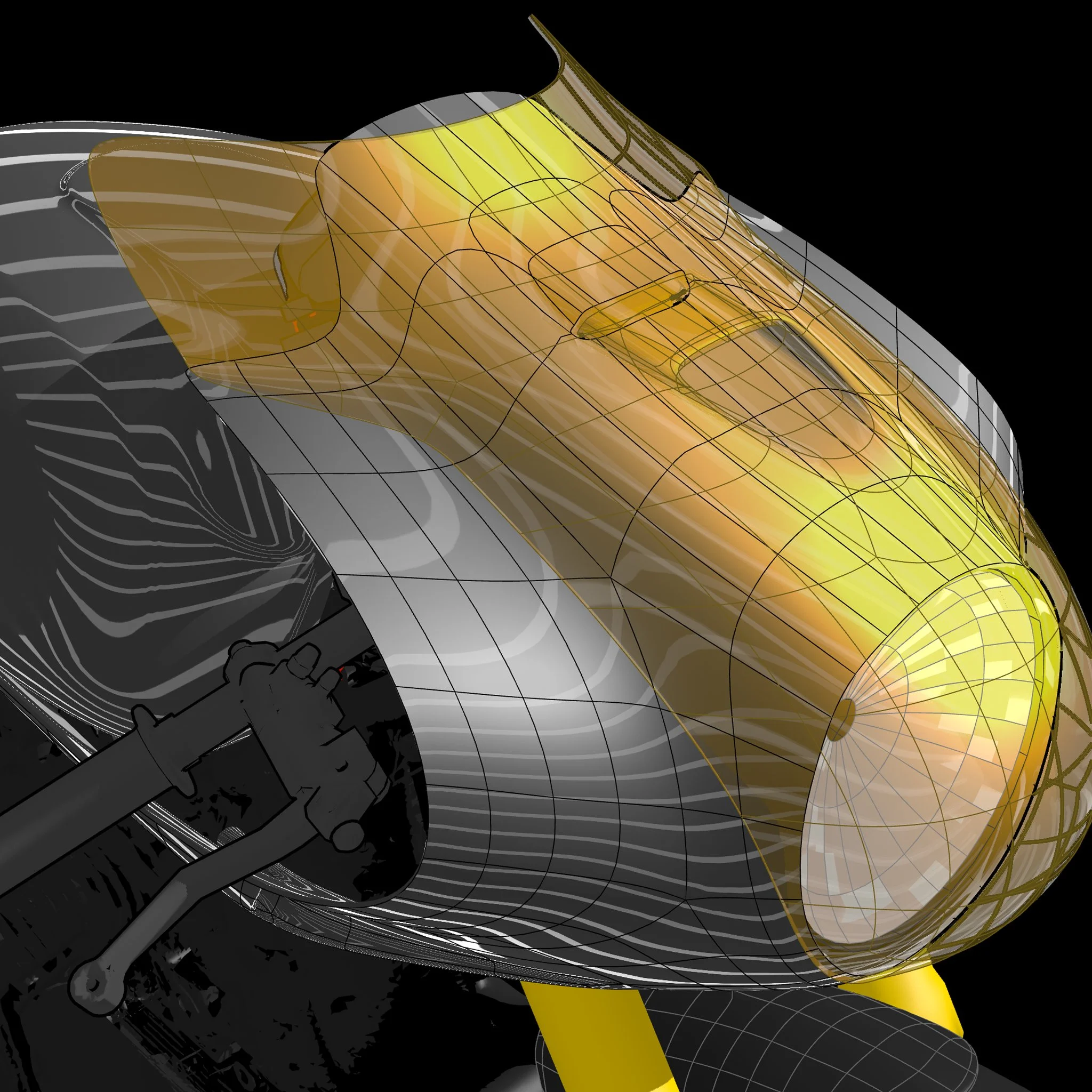

Surface diagnostic shader to help iron out wobbles!
Original BMW fuel pump on the original BMW tank underside, fits perfectly inside the new upper tank design.
Handlebar full-lock references

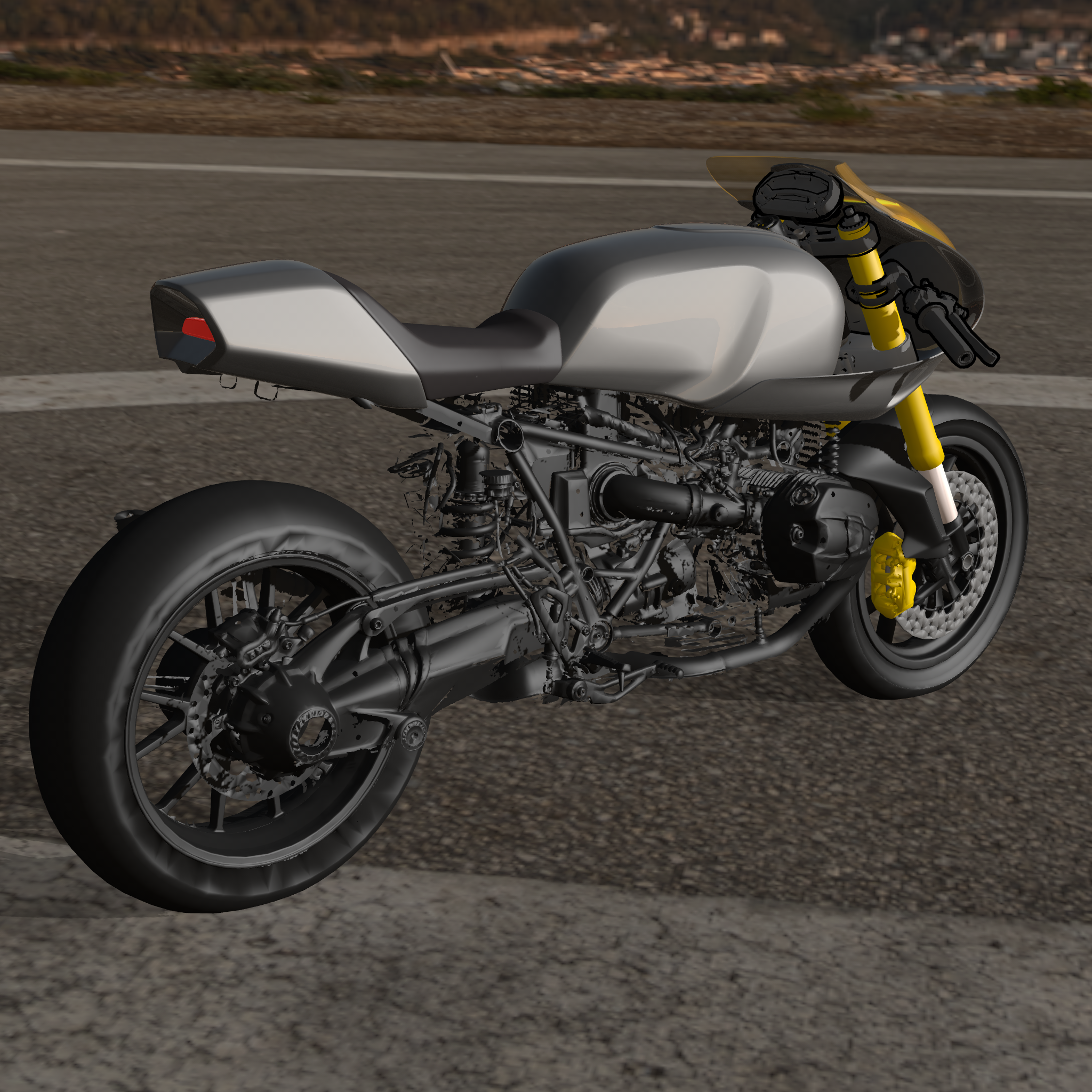

Viewing the bike in context using the headset's pass-through functionality.

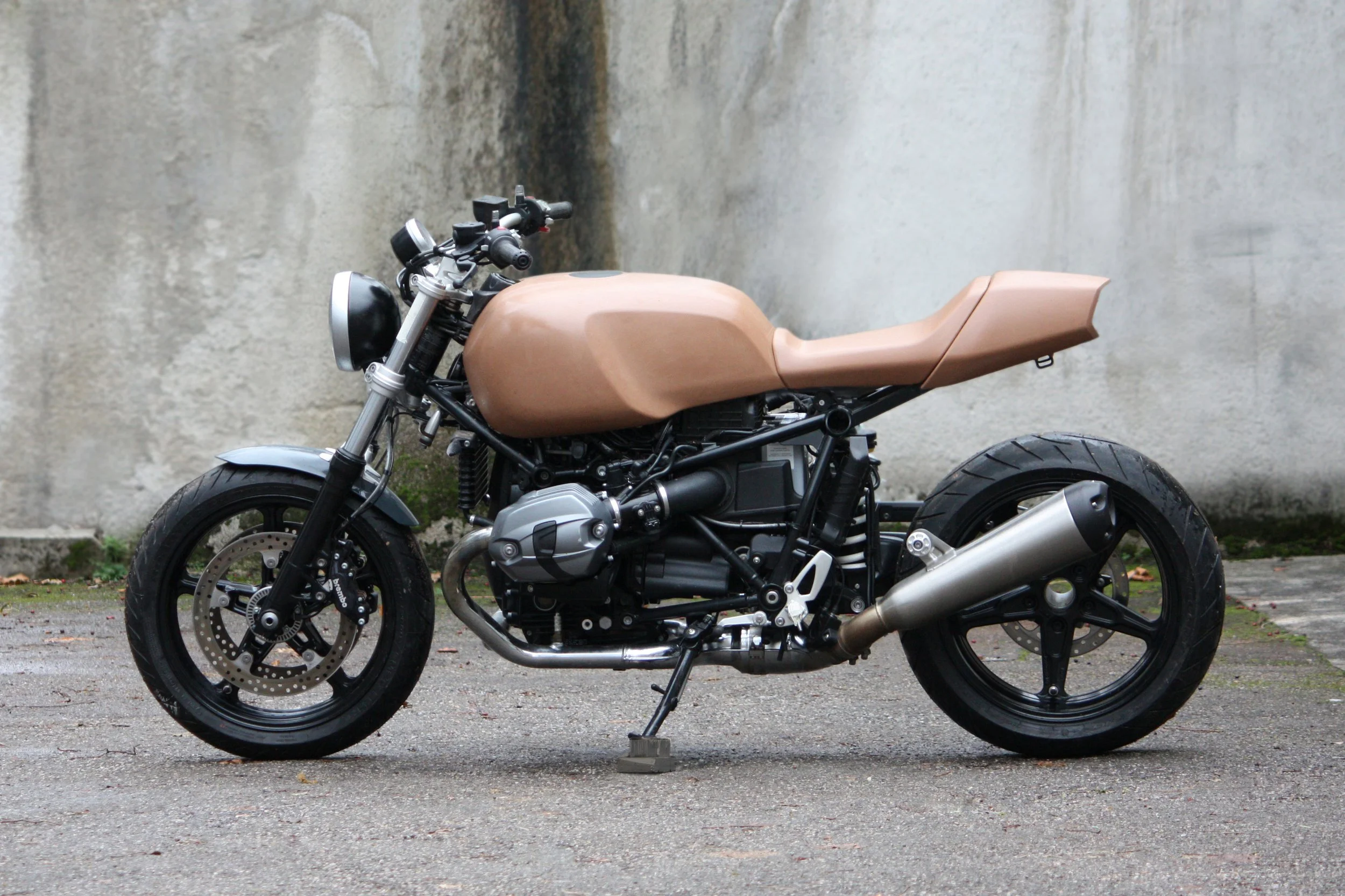

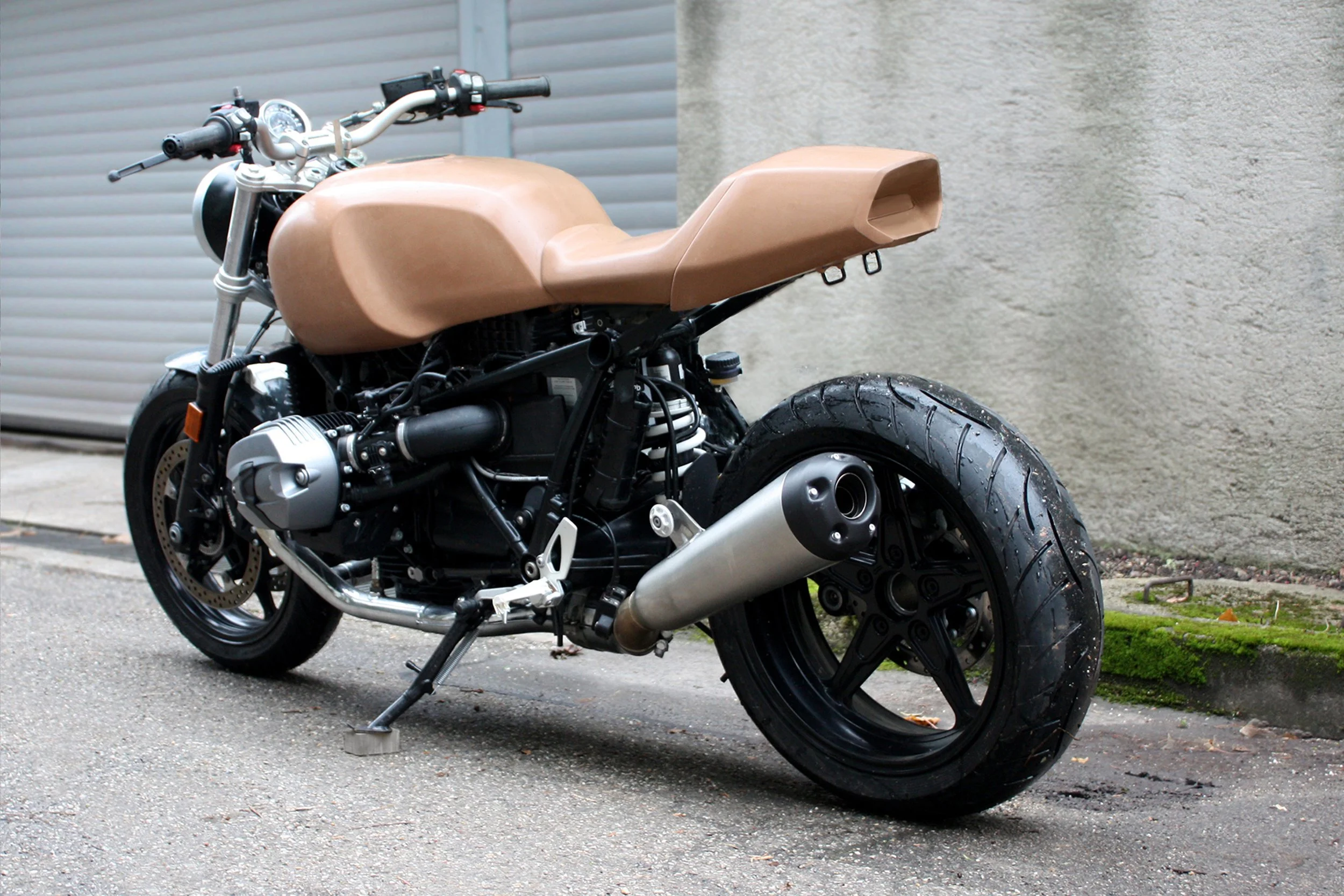

The original clay model.

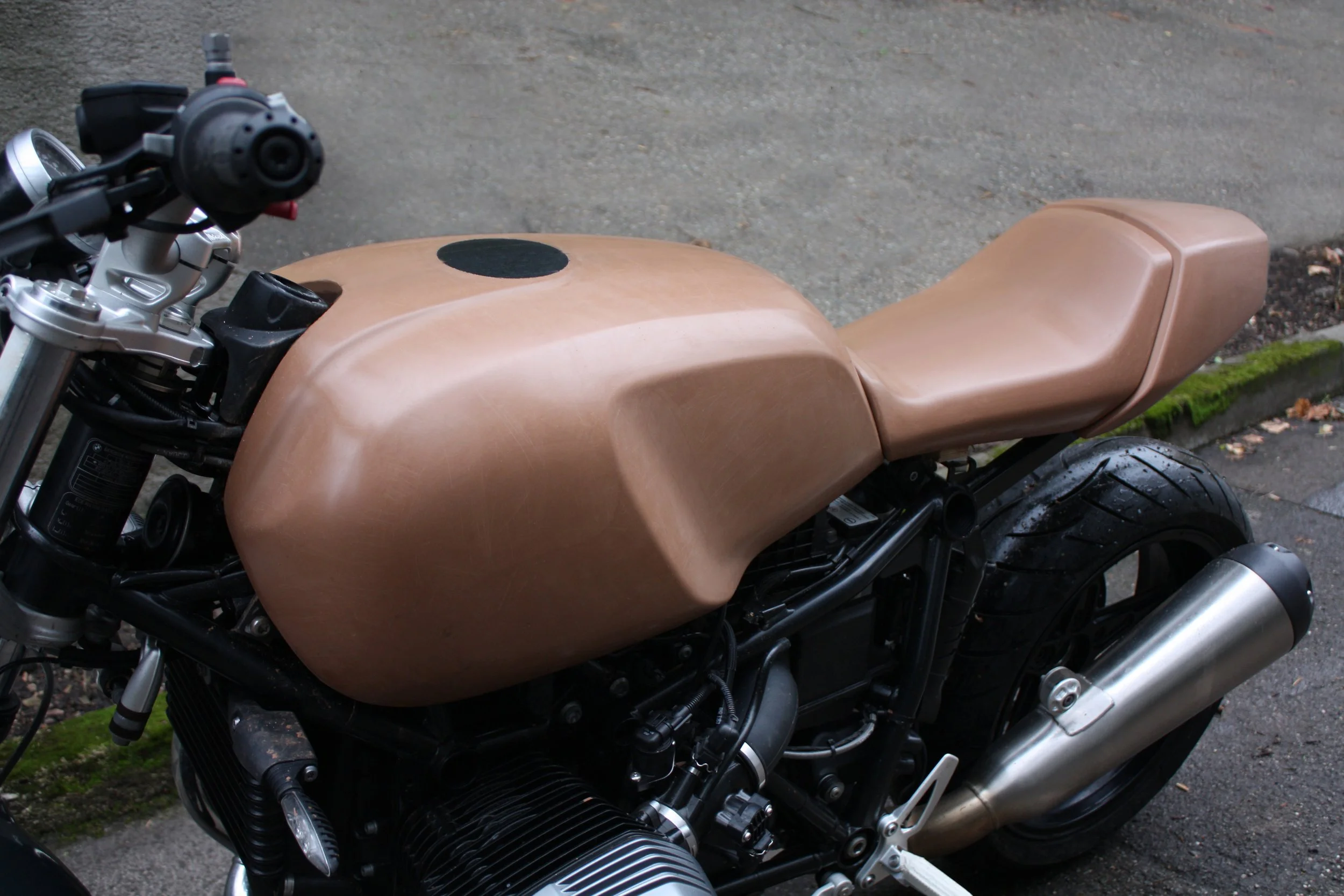

The original clay model. Mirror on the centre line removed in photoshop.

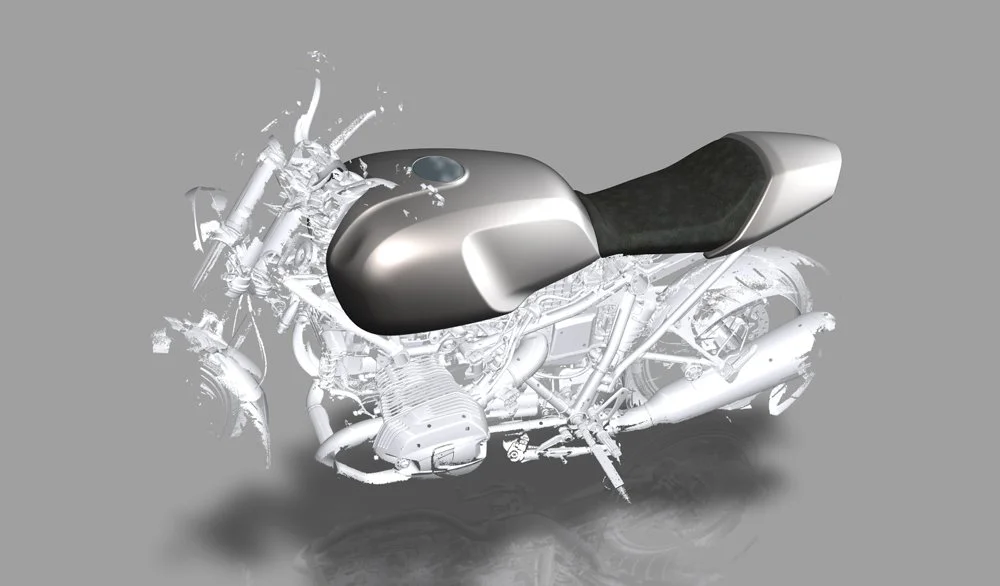

Clay scan rebuilt in Alias.
The BMW RnineT is one of the best loved motorcycles in the world to customise.
In 2017, for this project for Motone Customs, we sculpted a modern feeling motorcycle with simple, classic lines using traditional clay modeling. For example the fuel tank, inspiration was taken from the old “air-head” BMW tanks, such as found on the original BMW R90S/R100S of the late seventies.
Some years later in 2021, to complete the design, Nick build a front fairing concept using VR modelling tool Gravity Sketch, which allows him to build models with the same kind of interaction as when he was working with clay, but with the speed and flexibility that working digitally allows.
If you watch the video at the top of the page you’ll see the speed with which Nick was able to modify the fairing to accommodate higher handlebar position within a couple of hours.
